FloJet BW5000 "HIGH FLOW" Bottled Water System

This model has a larger, faster pump that increases flow from 0.6 GPM to 1.0 GPM.

The newly re-designed FloJet Model BW5000 Bottled Water Dispensing System PLUS is designed to pump water from commercially available 3, 5, or 6 gallon water bottles. The system delivers the bottled water under pressure to a sink mounted drinking water faucet, or to the water inlet of a refrigerator, icemaker, coffee brewer, or AlkaViva Water Ionizer.

The suction wand, when inserted into the water bottle, activates the float switch on the pump. This float switch also shuts off the system when the bottle is empty. The wand has a built in back-flow valve to prevent water from flowing back into the bottle.

The FloJet BW5000 Features

• New - Illuminated On/Off Switch
• New - Re-designed long life motor
• New -Thermal Overload protection to prevent overheating
• New - Diaphragm pump can run dry without damage
• New - Quieter Operation
• New - Hard Plumbed Internal Pump Connection prevents leaks
• New - 1/2 the motor speed of the BW4000 makes for quieter operation, less flow and longer life
• New - Liquid Inlet Connection is smaller and tighter
• 1/4" OD-JG integral to control box, no port clip required
• New - Electronic control box to wand assembly
• New - Internatioanal symbols on pump for easier installation
• New - "Warning" to turn unit off when changing bottles no longer needed with new AC to DC converter
• Universal seal cap most containers - Fits 3, 5, and 6 gallon plastic water bottles
• Suction wand and hose assembly (Second Wand with BW5020 - pump 2 bottles at one similtaneously)
• Float switch for automatic shut-off when bottle is empty
• Built-in check valve to prevent back flow
• Quick Connect Fittings for easy assembly
• Installation and maintenance instructions
• Compact size for easy traveling

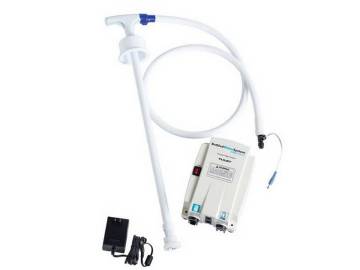

Package Contents:

• Main Module with On/Off rocker swich
• Sucton Wand and 4.0 Foot Hose Assembly
• 20 Feet of 1/4" Discharge Tube
• Wall Power Transformer
• Kit Fitting - Compression Nut and Sleeve
• Instruction Manual

Specifications:

• Flojet AC/DC Adapter - Class 2 Power Unit
• Input - AC 100V - 240V, 50/60 Hz., 100 W, 1.2 AMP Max.
• Output  - DC 12V, 3000 mA
• Flow - 1.0 GPM open flow
• Pressure - 40 PSI (2.7 BAR) MAX
• Dimensions
• 6.0 ft cord AC power cord
• Wand is 22.2" Overall, 20" into Bottle
• Suction Hose is 48 in
• Motor is 7.6" L x 5.0"  W x 2.7" H
• Mounting Footprint Centerlines -  4.01” x 6.19”
• Noise - 46.6 dB (24V motor running on 12V)
• UL and CUL listed
• UPC 705474208005
• Manufacturer's limited 1 year warranty
