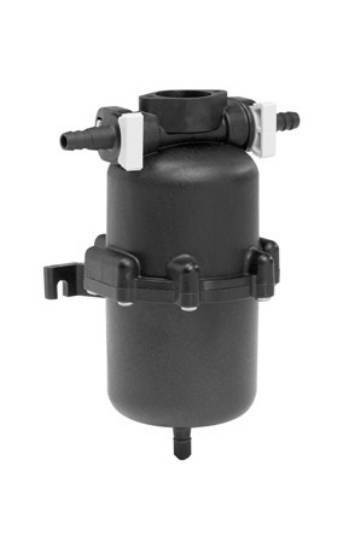

Flojet Pressurized Mini Accumulator Tank

Flojet Pressurized Mini Accumulator Tank

Model 30573-0002B

 The Flojet accumulator water tank is intended for installation in a pumped water system controlled by a pressure switch. It can also be used with air-driven pumps. The tank serves as a storage vessel as well as a pulsation dampener for pressurized fluid. The accumulator tank smoothes water flow and reduces on/off switch cycling of the pump by lessening the variation in pressure and flow between the pump and system discharge points. The even flow of water provides more consistent control of hot water temperature with systems using instant water heaters.

PRE-CHARGE PRESSURE ADJUSTMENT The accumulator tank is pre-charged at 10 psi (0.7 bar). If your electric pump cut-in pressure is significantly different you may adjust the tank pressure to better suit your particular installation. To increase air pressure in tank, shut pump off, open a faucet to relieve system pressure and adjust pre-charge pressure using ordinary tire gauge and tire pump at valve in end of tank. Pressure should be checked from time to time.

Features -

• Compact pneumatic bladder tank is designed for smaller systems and space
• Mounts easily in any position
• Perfect for low volume water supply applications
• Tank has an internal bladder
• Creates smoother, more even flow
• Quiet operation
• Easily fitted to new or existing systems
• Compact size Quick-connect/disconnect port connectors
• Mounting point for optional pressure switch
• Food grade materials, NSF Standard 18 listed

 Specifications -

• Dimensions – 8.4” (214mm) L x 4.7” (118mm) D
• Capacity – .1 Gallon (21.5 ounces, or .65L)
• Standing Weight – 1 pound
• Tank is pressurized to 10 psi (0.7 bar) and can be fine-tuned to the cut-in pressure of a pump
• Maximum Operating Pressure - 125 PSI (8.6 bar)
• Port Type – ½” (12.7 mm) barbed quick connect
• Air Fill Valve – Standard Automotive style tire valve
• Maximum System Pressure – 125 psi (8.6 bar)
• For best results, do not pressurize tank above 20 psi (1.4 bar)
• Model No.: 30573-0002B
• Approvals – NSF Standard 18 listing
